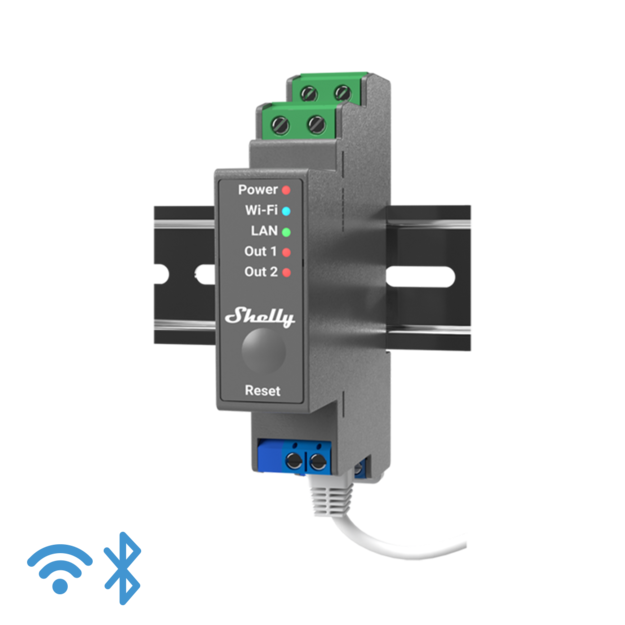

Description Specifications Professional 2-channel DIN rail smart switch with dry contacts Suitable for home and facility automation with remote control. DIN rail mountable inside a breaker box. Enhanced safety features and compatible with most used home automation platforms • LAN, Wi-Fi, and Bluetooth connection • 2 outputs, 16A each. Total device maximum of 25A • Dry contacts • DIN rail mountable • 2-phase control • Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants Size (HxWxD): 94x19x69 ±0.5 mm Weight: 76 g Mounting: DIN railScrew terminals max torque: 0.4 NmConductor cross section: 0.5 to 2.5 mm² / 20 to 14 AWG (green connectors) 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors)Conductor stripped length: 6 to 7 mm (green connector), 5 to 6 mm (blue connectors)Shell material: PlasticColor: GrayAmbient temperature: -20 °C to 40 °C Humidity: 30 % to 70 % RHMax. altitude: 2000 m Power supply voltage AC: 110 - 240 VPower consumption: Max switching voltage AC: 240 VMax switching current AC: 16 A per channel, 25 A totalTemperature sensor: YesRF band: 2400 - 2495 MHzMax. RF power:
