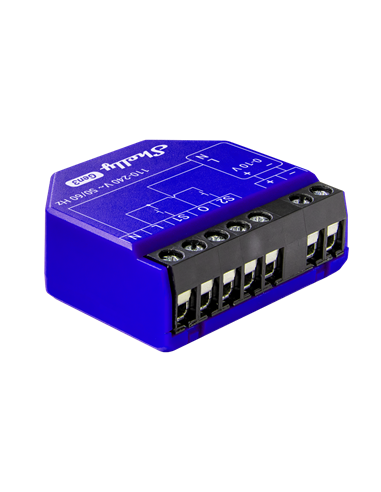

Description Specifications Shelly Dimmer 0/1-10V PM Gen3 is a smart dimmer/controller that enables remote control of devices with a 0-10V/1-10V input via various devices such as a mobile phone, tablet, computer, or home automation system. The device can function autonomously within a local Wi-Fi network or utilize cloud-based home automation services. It offers connectivity via Wi-Fi and Bluetooth without the need for an additional hub.Key Use Cases: - Adjust the brightness of dimmable lights within the 0-10V range. - Create smart schedules for automatic brightness adjustments throughout the day. - Upgrade existing lighting systems without changing switches. - Synchronize lighting with sunrise and sunset times. - Activate night mode to reduce brightness during nighttime. - Integrate with third-party systems like Home Assistant, Google Home, Alexa, SmartThings. - Control brightness with a single or dual button press. - Monitor and measure the energy consumption of connected lights. Bluetooth: 4.2, YesCustom scripts (mJs): YesHumidity: 30% to 70% RHAltitude: Up to 2000 mPower supply (AC): 110-240V ±10%, 50/60HzScripting: YesMQTT: YesMemory: 8 MBPower measurement: YesOperating temperature: -20 ºC to 40 ºCSunrise/Sunset: YesWeekly schedule: YesWireless/Wi-Fi protocol: 802.11 b/g/nRange: Up to 30 m indoors and 50 m outdoorsBluetooth RF frequency range: 2400 - 2483.5 MHzBluetooth max. RF power: Bluetooth range: Up to 10 m indoors and 30 m outdoorsWi-Fi max. RF power: Wi-Fi RF frequency range: 2401 - 2495 MHzEnclosure material: PlasticStripped wire length: 5 to 6 mmMax. screw terminal torque: 0.4 Nm
